Product Details:
|
| Roller Material: | Cr12, Heat Treatment | Cutting Length Accuracy: | ±1mm |
|---|---|---|---|
| Material Thickness: | 8mm | Control System: | PLC |
| Power: | 22KW*2 | Product Name: | Purlin Roll Forming Machine |
| Cutting Type: | Hydraulic Cutting | Roller Stations: | 20 Stations |
| Highlight: | U Purlin Roll Forming Machine,Purlin Roll Forming Machine Customized,Automatic Roll Forming Machine Factory | ||
Purlin Roll Forming Machine For 8mm U Purlin
Purlin Roll Forming Machine is designed to produce high-quality U purlin with precise cutting tolerance of ≤±1 mm. This roll forming machine is equipped with a PLC control system, 20 roller stations, and servo motor power system. It is capable of processing material thickness of 6.0-8.0mm, and comes with a hydraulic cutting system for high efficiency.
Drawing:
| ROLL FORMING MACHINE FOR 8MM U PROFILE(SIZE CHANGING AUTOMATICALLY) | |
| Material Specification | |
| Thickness | 6mm to 8mm |
| Web | 266mm to 320mm or customized |
| Flange | 95mm to 100mm or customized |
| Feeding width | 432mm~508mm |
| Material | Hot rolled steel |
| Yield strength | 250MPa to 550MPa |
| Machine Components | |
| 5Ton*600mm Hydraulic Decoiler | |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 4KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Pneumatic Shoveling Device | |
| Material head shoveling device to drive the feed-in table, air source provied by the user | |
| Power Feed-in Device | |
| Driving system | Gear/sprocket |
| Motor | 7.5KW |
| Stations to feed in | 4 |
| Lifting of the upper shafts | Controlled pneumatically |
| Pre-leveling Device | |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set, Manual control | |
| Hydraulic Pre-shearing device | |
| Function of pre-shearing devic | Smart cut control, to cut off the end of the final piece of sheet,cut to length control, manual clutch to assit |
| Cutting blade material | Cr12Mov, heat treatment |
| Spraying cooling system for cutting blade | 1 unit |
| Hydraulic pump motor | 15KW |
| Roll Forming Machine | |
| Driving system | Toroidal worm box |
| Forming station | 20 stations |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Shafts Diameter | Φ105~110mm |
| Servo motor to drive | 22KW×2 |
| Motor for size changing | 2.2KW |
| Line speed of rollformer | Approx. 10m/min or customized |
| Spraying cooling system | Between certain stations |
| PLC Control System | |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1 mm |
| Punching tolerance | ≤±1 mm |
| Control Voltage | 24V |
| Product Rack | 3 meters×2 |

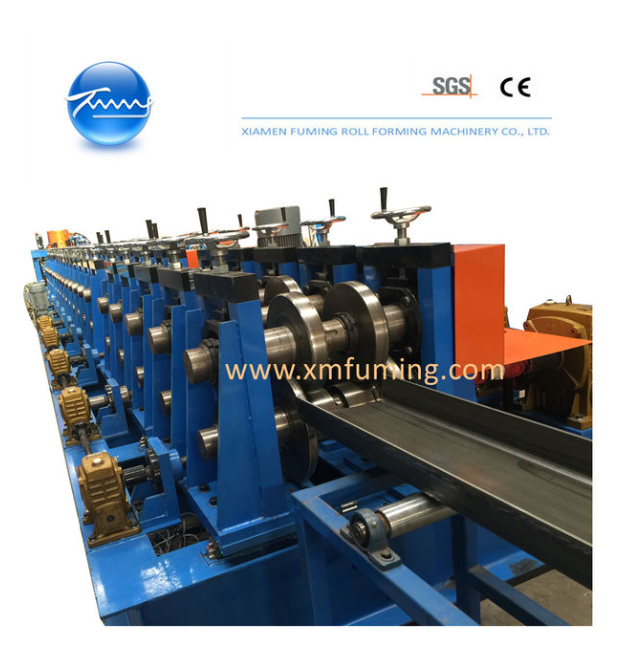

.png "16-1.png")
The Purlin Roll Forming Machine from XIAMEN FUMING is a powerful and versatile production line that is designed to produce U Purlin in large quantities. This product features 20 Stations for forming the purlins. With its advanced technology, this machine is able to produce high quality and durable purlins in a short time. It is also cost effective and efficient, and can be used in various industrial applications. The Purlin Roll Forming Machine from XIAMEN FUMING is perfect for companies looking for a reliable and efficient way to produce purlin in large quantities.
We provide comprehensive technical support and service for Purlin Roll Forming Machine. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.
If you have any questions or need technical support for Purlin Roll Forming Machine, please don't hesitate to contact us. We are here to help you.
Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
