Product Details:
|
| Roller Material: | Cr12, Heat Treatment | Roller Stations: | 14 Stations |
|---|---|---|---|
| Control System: | PLC | Cutting Length Tolerance: | ±2mm |
| Forming Speed: | 15m/min | Motor Power: | 11KW |
| Material Thickness: | 0.9mm To 1.75mm | Product Name: | Racking System Roll Forming Machine |
| Highlight: | Upright Racking Roll Forming Machine,11KW Racking Roll Forming Machine,Precise Upright Roll Forming Machine | ||

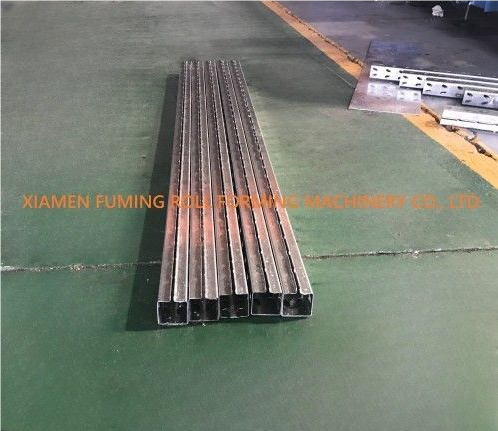

Upright Roll Forming Machine for YX50-50 Profile
This roll forming machine is for making upright profile, it features a series of 14 stations with precisely machined rollers. It is driven by two 11KW motors and it is suitable for forming materials like galvanized steel with material thickness up to 1.75mm. The cutting length tolerance is within ±2mm.

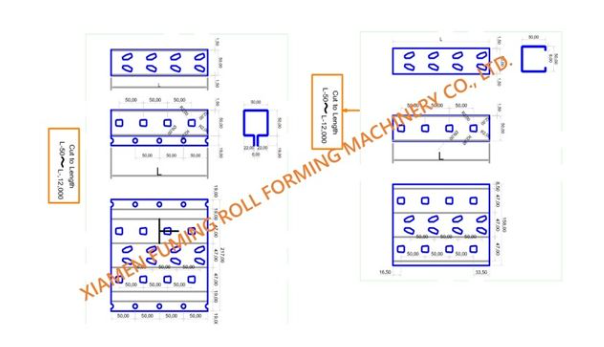

Drawing:

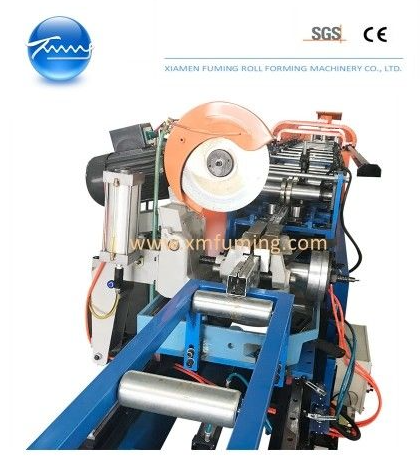

| ROLL FORMING MACHINE FOR YX50-50 UPRIGHT PROFILE | |
| Material Specification | |
| Thickness | 0.9mm to 1.75mm |
| Material | GI |
| Yield strength | 235MPa or customized |
| Machine Components | |
| 1.5T*300mm Decoiler With Pre-leveler | |
| Load capacity | Max.1.5Tons |
| Coil inner-diameter | 510±30mm |
| Coil outer-diameter | Max.1200mm |
| Coil width | Max.300mm |
| Motor | 1.5KW |
| Hydraulic Pre-punching device and Servo Feed-in Device | |
| Punching tool material | Cr12, heat treatment |
| Hydraulic pump motor | 18.5KW |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Option for driving system | Gear box or toroidal worm box |
| Forming station | 14 stations |
| Roller material | Cr12, heat treatment |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ60mm |
| Main motor | 11KW, frequency speed control |
| Line speed of rollformer | Approx. 15m/min or customized |
| Saw Cutting Device | |
| Cutting type | By Saw |
| Clamping | Pneumatically |
| Motor | 5.5KW |
| PLC Control System | |
| Function | Control quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm or customized |
| Control Voltage | 24V |
| Product Rack | Un-powered, 3meters*1 |
.png "40-1.png")
Applications:
The Racking System Roll Forming Machine from XIAMEN FUMING is designed to manufacture shelf and upright profiles for racking systems from galvanized steel with a material thickness up to 1.75mm. This roll forming machine is equipped with a hydraulic cutting system, ensuring a precise cutting length tolerance of ±1mm. This roll forming machine is suitable for metal sheet processing and is widely used in storage system.
