Product Details:
|
| Cutting Mode: | Hydraulic Cutting | Cutting Length: | Adjustable |
|---|---|---|---|
| Forming Speed: | 18m/min | Control System: | PLC Control |
| Roller Material: | Cr12, Heat Treatment | ||
| Highlight: | Fascia Ridge Cap Roll Forming Machine,5.5KW Ridge Cap Roll Forming Machine,Fascia Roll Forming Machine Precision | ||

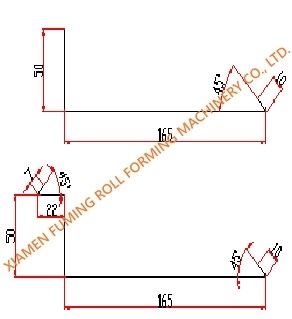

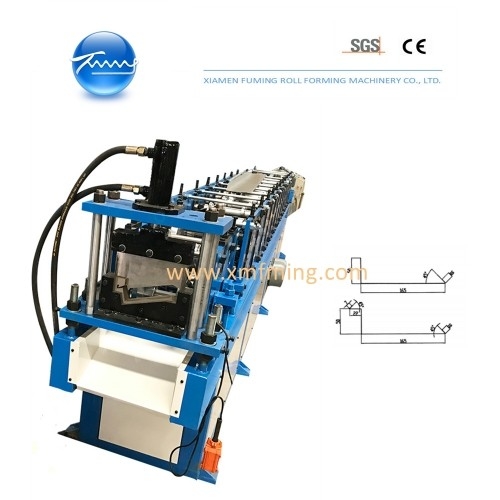

Fascia Roll Forming Machine for YX50-165 Profile
This Fascia Roll Forming Machine is a powerful and efficient roll forming machine. With a Forming Speed of 18m/min and PLC Control System, this machine is designed to meet the high quality standards for producing Ridge Cap. The metal sheets produced by this machine have high precision and excellent surface finish, making it a perfect choice for mass production.
| ROLL FORMING MACHINE FOR YX50-165 FASCIA PROFILE | |
| Material Specification | |
| Thickness | 0.3mm to 0.5mm |
| Material | GI |
| Feeding width | 224mm/253mm |
| Yield strength | 550MPa |
| Machine Components | |
| 1.5Ton*300mm Simple Decoiler | |
| Load capacity | Max.1.5Tons |
| Coil inner diameter | 400-580mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.300mm |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Forming station | 12 stations |
| Shaping device | 5 rollers for shaping |
| Roller material | 45# steel, hard chorme coated |
| Shafts Diameter | Φ60mm |
| Main motor | 5.5KW, frequency speed control |
| Line speed of rollformer | Approx. 18m/min or customized |
| Hydraulic Cutting Device | |
| Cutting type | No Blanking cut |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 3KW |
| PLC Control System | |
| Function | Control quantity and and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm |
| Control Voltage | 24V |
| Product Rack | 3 meters×1 |
This roll forming machine is designed to produce fascia, and is suitable for installation in many different kinds of building. It is also easy to operate and maintain.
Technical Support and Service for Roll Forming Machine
We provide comprehensive technical support and service for Roll Forming Machine. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.
If you have any questions or need technical support for Roll Forming Machine, please don't hesitate to contact us. We are here to help you.
Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
