Product Details:
|
| Roller: | 10 Stations | Control System: | PLC |
|---|---|---|---|
| Type: | Fencing Roll Forming Machine | Material: | GI, PPGI |
| Roller Material: | 45# Steel, Hard Chorme Coated | Speed: | 25m/min |
| Cutting Type: | Hydraulic Cutting | Thickness: | 0.2-0.7mm |
| Highlight: | Custom Fence Post Roll Forming Machine,Fence Post Roll Forming Machine 4KW,Fencing Post Roll Forming Machine Powerful | ||
Powerful Hydraulic Cutting Fence with 4KW Motor for 0.2-0.7mm Thickness
The Fencing Post Roll Forming Machine is a perfect fit for businesses looking for a reliable and cost-effective solution to produce high-quality fences. With its cutting servo motor of 1.8KW, PLC control system, and 10 stations of rollers, the machine is capable of producing various types of fences quickly and efficiently. Moreover, its speed of 25m/min ensures that businesses can produce a large number of fences in a short period of time.

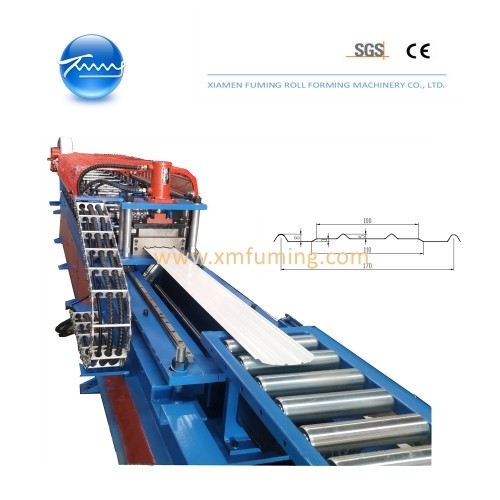

| ROLL FORMING MACHINE FOR YX170 FENCING PROFILE | |
| Material Specification | |
| Thickness | 0.2mm to 0.7mm |
| Feeding width | Approx.200mm±3mm |
| Material | PPGI, GI |
| Yield strength | 550MPa |
| Machine Components | |
| 1.5Ton*300mm Simple Decoiler | |
| Load capacity | Max.1.5Tons |
| Coil inner-diameter | 508±30mm |
| Coil outer-diameter | Max.1200mm |
| Coil width | Max.300mm |
| Motor to drive | 1.5KW |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Forming stages | 10 stages |
| Roller material | 45# steel, hard chorme coated |
| Shafts Diameter | Φ60mm |
| Main motor | 4KW, frequency speed control |
| Line speed of rollformer | Approx. 0-25m/min or customized |
| Hydraulic Non-stop Cutting Device | |
| Cutting type | Non-stop to cut, Slug breaker |
| Cutting tool material | Cr12, heat treatment |
| Servo motor | 1.8KW |
| Hydraulic station | 4KW |
| PLC Control System | |
| Function | Control quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
| 1.2 Meters Long Product Rack | |
Applications:Fencing roll forming machine, manufactured by XIAMEN FUMING from China, is the ideal solution for creating a variety of fence designs. With a minimum order quantity of 1 set, customers can purchase the machine at a negotiable price. The roll forming machine is able to cut and form metal sheets with a thickness of 0.2-0.7mm. It is equipped with a cutting servo motor of 1.8KW and has a hydraulic cutting type. The roller material of the machine is made of 45# steel and is hard chrome coated. It is capable of forming GI and PPGI materials. The machine is shipped without any outer packing and is delivered in a container within 50 work days.
Technical Support and Service for Our Machines
We provide comprehensive technical support and service for our machines. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.
If you have any questions or need technical support for our machines, please don't hesitate to contact us. We are here to help you.
Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
