Product Details:
|
| Drive Mode: | Gear/sprocket | Material: | Galvanized Steel |
|---|---|---|---|
| Forming Speed: | 15m/min | Control System: | PLC Control |
| Cutting Mode: | Hydraulic Cutting | ||
| Highlight: | Gutter Downpipe Roll Forming Machine,Profile Downpipe Roll Forming Machine,Gutter Roll Forming Machine 11KW | ||

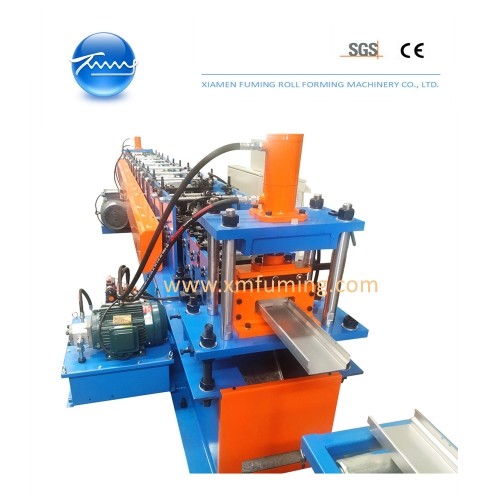

Gutter Roll Forming Machine for YX45-128 Profile
This Gutter Roll Forming Machine is a kind of production line which is specifically designed and developed for the production of Gutter. It has a drive mode of gear/sprocket and a control system of PLC control that ensures reliable operation and high production efficiency. It also adopts hydraulic cutting method for more accurate and efficient cutting, with a forming speed of 15m/min. This Gutter Roll Forming Machine ensures stable performance, high production capacity and excellent product quality.
| ROLL FORMING MACHINE FOR YX45-128 GUTTER PROFILE | |
| Material Specification | |
| Thickness | 1.8mm |
| Material | GI |
| Yield strength | 235MPa |
| Machine Components | |
| 1.5Ton*300mm Simple Decoiler | |
| Load capacity | Max.1.5Tons |
| Coil inner-diameter | 400-580mm |
| Coil outer-diameter | Max.1600mm |
| Coil width | Max.300mm |
| Hydraulic Pre-punching Device | |
| Hole punching | 4-φ5 holes to be punched at a time |
| Punching mould material | Cr12, heat treatment |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Forming station | 12 stages |
| Roller material | GCr15, heat treatment, hard chorme coated |
| Shafts Diameter | Φ75mm |
| Main motor | 11KW, frequency speed control |
| Line speed of rollformer | Approx. 15m/min |
| Hydraulic Cutting Device | |
| Cutting type | Slug breaker |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 4KW |
| PLC Control System | |
| Function | Control quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
| Product Rack | Un-powered, 3 meters long |
This roll forming machine is ideal for producing gutters, which are widely used in residential and commercial buildings.It features a forming speed of 15m/min and PLC control system for precise and accurate cutting. The cutting mode is hydraulic. With its high production capacity, the machine can quickly and efficiently produce gutters for drainage applications. Colorbond gutters is with long-lasting durability and corrosion-resistant properties.It is perfect for any home or business that requires a durable and long-lasting drainage system.
Support and Services:
Technical Support and Service for Roll Forming Machine
We provide comprehensive technical support and service for Roll Forming Machine. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.
If you have any questions or need technical support for Roll Forming Machine, please don't hesitate to contact us. We are here to help you.
Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
